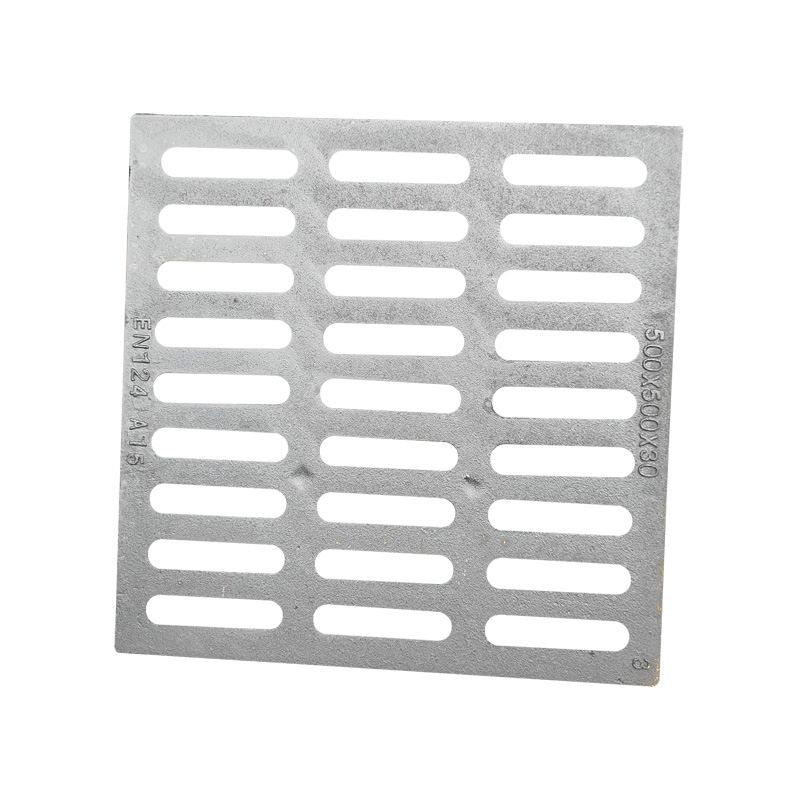

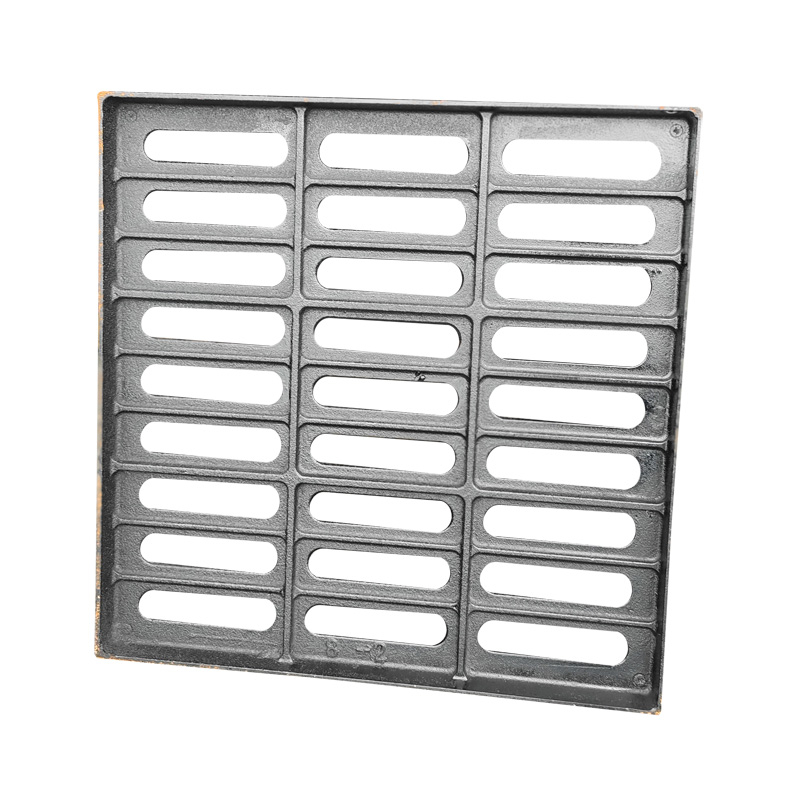

Trench Cover

Trench is open conduits in the substrate. To prevent tripping people or catching debris, they must be covered with grates. Given the variety of places that these drains may be installed, designers have a lot of choice when picking trench grates material.Ductile iron and cast iron grates are very similar. Selecting between the two depends upon the application and drainage system needed. Ductile iron contains graphite that increases flexibility to withstand extreme cold and not break compared to cast iron. Ductitle iron trench grate is much stable and high strength compared with other materials.
Availability:

Product Description

Application


Decorative borders, pool and spa, homes and residential complexes, seawalls, parks, office buildings, etc.


Specification


ProductSize(W*L*H,mm)Weight(kg)Loading Capacity
Trench Grate640×640×3515A15
600×600×4035C250
600×600×2010A15
590×480×2010B125
590×300×207B125
585×885×5072D400
500×800×5067D400
500×500×4025D400
500×500×3014D400
500×400×4011B125
480×500×3010C250
450×750x4024D400
450×750x4015B125
450×750x3016D400
450×700×8093D400
400×600×4019D400
400×600x4010B125
400×600×3010C250
400×500x4017D400
400×500×309D400
400×500x306B125
400×500×205B125
