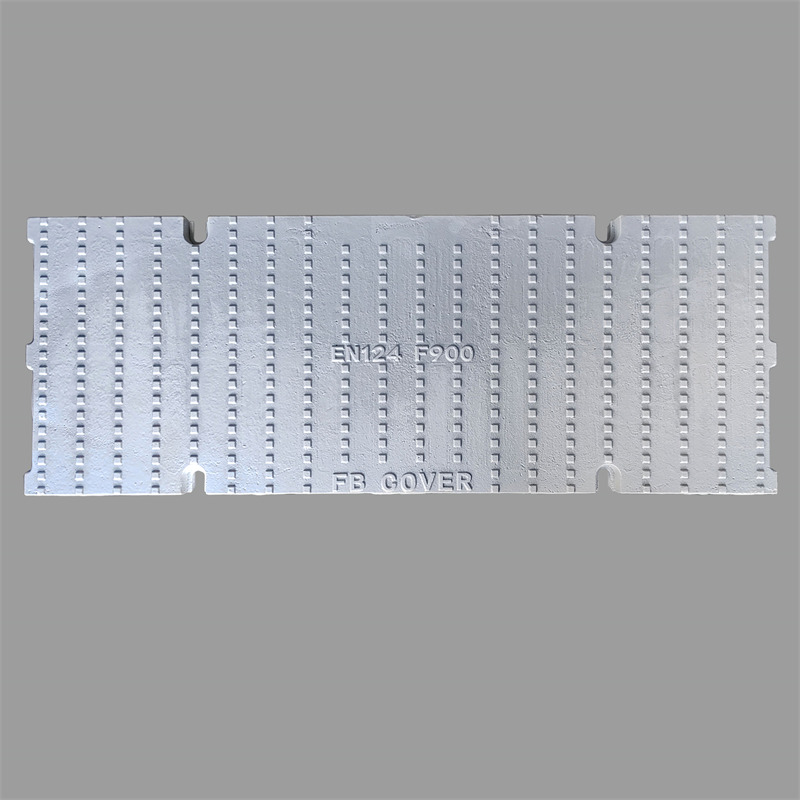

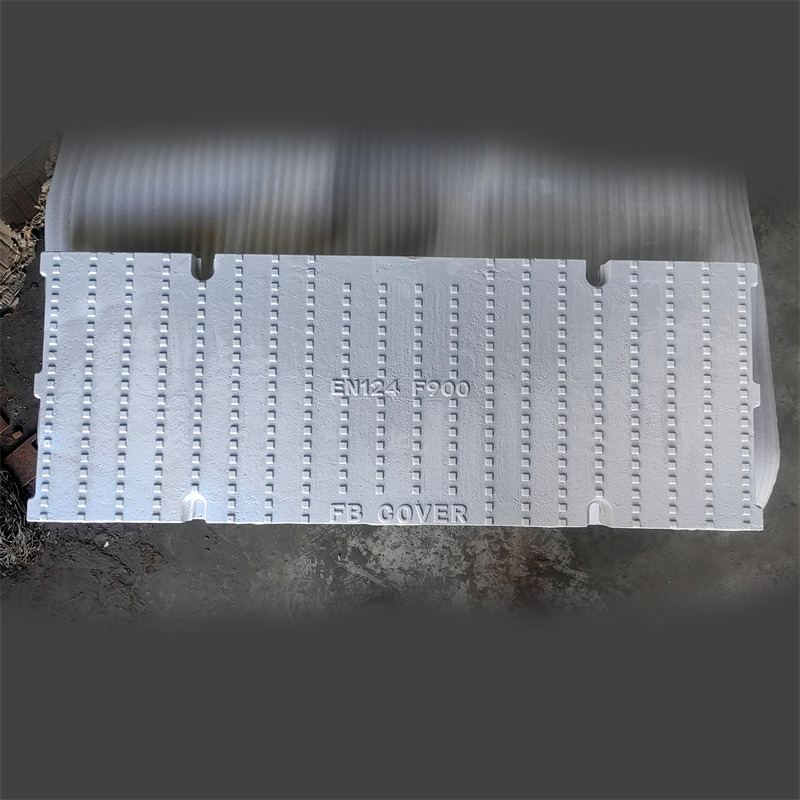

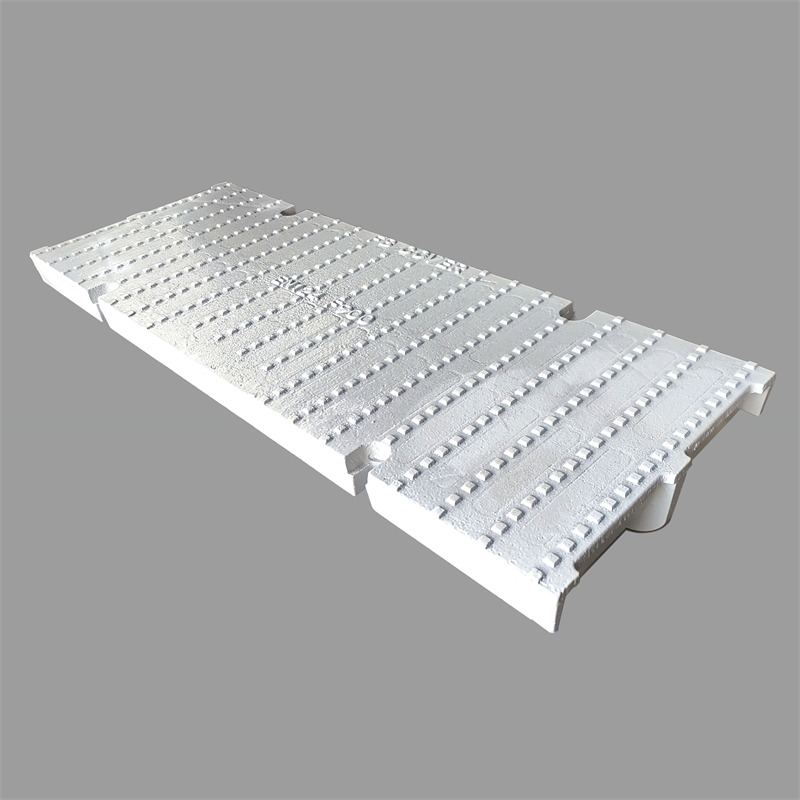

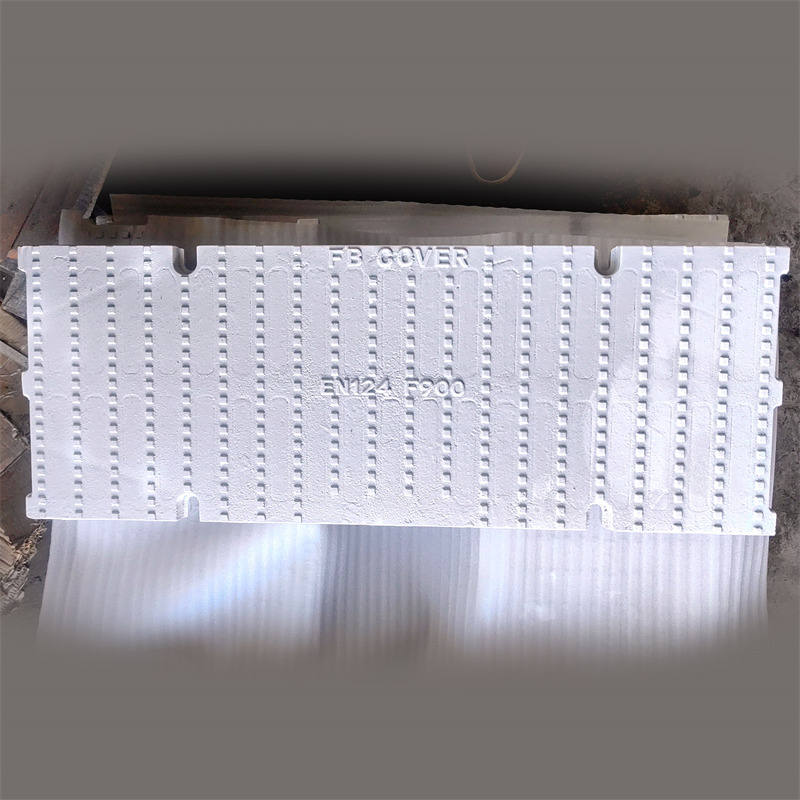

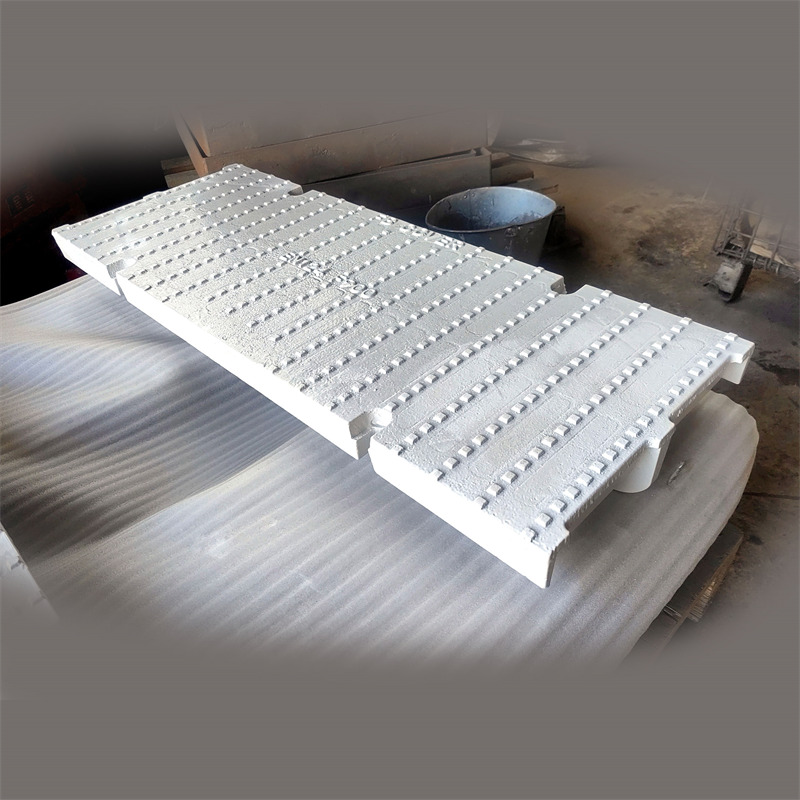

EN124 F900 Ductile Iron Rectangular Manhole Cover 300x1000mm

Manufactured for unparalleled resilience, our premium 300x1000mm rectangular drainage covers are expertly cast from high-grade ductile iron to withstand the most demanding infrastructural environments. The underside is strategically reinforced with a robust ribbed structure that efficiently distributes massive dynamic loads, preventing deformation or structural failure under continuous heavy traffic. Furthermore, the meticulously designed raised surface pattern ensures excellent skid resistance, safeguarding both pedestrians and industrial vehicles in adverse weather conditions. As an experienced foundry, we deliver these high-performance municipal castings to provide global contractors with a dependable, long-lasting, and virtually maintenance-free infrastructure solution.

Designed for extreme engineering conditions, our heavy-duty rectangular manhole covers (300x1000mm) offer maximum security for high-risk zones. Below is the detailed technical data for our F900 ductile iron castings.

• Material: High-Grade Ductile Iron (Nodular Cast Iron GGG50 / QT500-7)

• Standard: BS EN 124-2

• Load Class: F900 (Up to 900kN / 90 Tons)

• Dimensions: 300x1000mm (Rectangular Trench / Drainage Cover)

• Surface Treatment: Black Bitumen Coating (Anti-corrosion and rust-resistant)

• Features: Heavy-duty ribbed underside, anti-slip raised pattern, extreme impact resistance

Q: Where is an EN124 F900 load class rectangular manhole cover typically used?

A: F900 is the highest load class defined by the EN124 standard, capable of withstanding up to 900kN. These heavy-duty 300x1000mm trench covers are strictly designed for areas subjected to extreme wheel loads, such as airport runways, aircraft taxiways, commercial seaports, and heavy industrial machinery facilities.

Q: Why should we choose ductile iron over traditional grey cast iron for trench covers?

A: Ductile iron (nodular cast iron) possesses a unique microstructure that offers superior tensile strength and impact resistance. Unlike grey cast iron which is brittle and can shatter under sudden heavy impacts, ductile iron will safely flex or bend under extreme stress, providing a critical safety margin for high-traffic infrastructure.

Q: Can the 300x1000mm ductile iron cover be customized for specific engineering projects?

A: Yes. As an experienced source manufacturer, FL Manhole Cover provides comprehensive OEM/ODM services. We can customize the surface anti-slip patterns, integrate secure locking mechanisms/hinges to prevent theft or dislodgement, and cast custom agency or corporate logos directly onto the cover to meet your specific municipal or private project requirements.
