Ductile Iron Products
Payment :
30% deposit TT before production ,70% balance before shipmentProduct Origin :
ChinaProduct Introduction

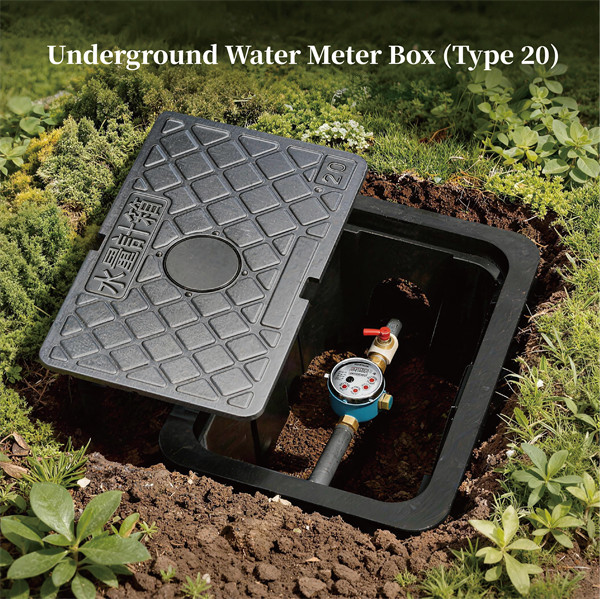

The Heavy Duty Ductile Iron Underground Water Meter Box is designed to provide secure and durable protection for water meters and underground utility connections. Manufactured from high-quality ductile iron, it delivers exceptional strength, impact resistance, and long-term structural stability.
Designed for municipal water distribution systems, residential developments, and commercial infrastructure, the box protects metering equipment from traffic loads, weather exposure, and unauthorized access. Its corrosion-resistant construction ensures reliable performance in demanding outdoor environments.
The compact design allows easy installation and convenient maintenance access, making it suitable for water utilities, public infrastructure, industrial facilities, and underground service networks.

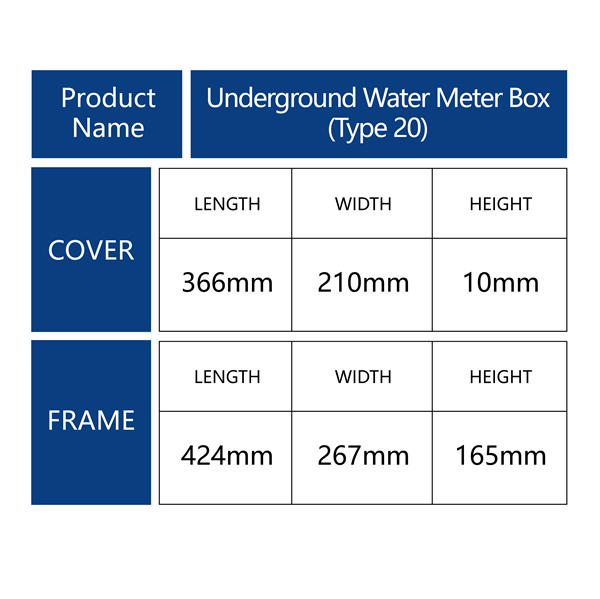

Product Specification
| Material: | Ductile Iron EN-GJS-500-7 |
| Dimensions: | Base Frame: 424 × 267 × 165 mm |
| Top Lid: 366 × 210 × 10 mm | |
| Coating: | Anti-corrosive black bitumen or epoxy paint |
| Structural Layout: | Ribbed reinforcement on side-walls |
| Load Security: | Pedestrian to Light Vehicular Rating |
Product Advantages
High-Strength Ductile Iron Construction
Manufactured from premium heavy-duty ductile iron, this robust housing unit delivers exceptional load-bearing capacity. It is specifically engineered to withstand severe external impact, preventing crushing or deformation from surface traffic and heavy loads.
Comprehensive Environmental Protection
Designed for secure underground installation, the box safely isolates sensitive water meters, boundary valves, and reader devices. It provides a highly effective barrier against soil ingress, dirt, debris, and shields internal components from deep soil freezing in severe weather conditions.
Anti-Slip Diamond Tread Design
The top cover features a precision-cast, raised diamond grid pattern. This safety-focused tread ensures maximum surface friction, preventing pedestrian slips and falls in wet or icy municipal and residential environments.
Precise Engineering & Standardized Dimensions

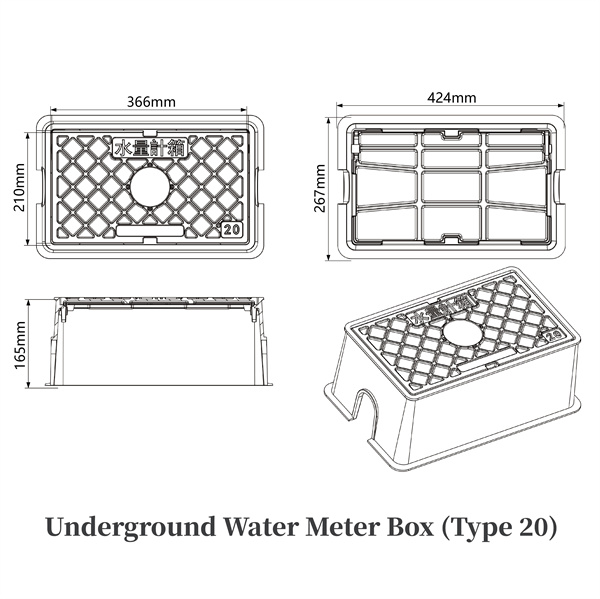

Built to precise Type 20 specifications (Overall Frame Dimensions: 424mm x 267mm, Height: 165mm; Cover Dimensions: 366mm x 210mm). These exact engineering tolerances guarantee a seamless, flush-to-ground fit and highly reliable integration with standard underground utility networks.
Integrated Frame for Secure Installation

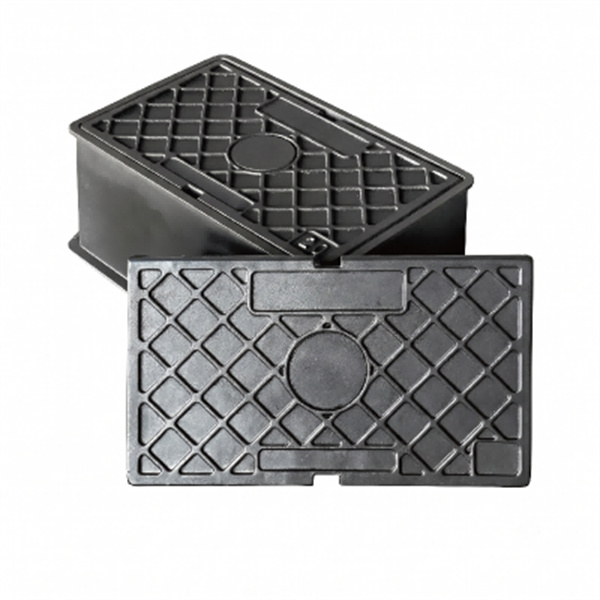

Supplied as a complete set with a matching ductile iron frame, ensuring structural stability and preventing the box from shifting over time. The precise cover-to-frame fit reduces rattling while allowing utility workers quick, unhindered access for routine meter reading and maintenance.
OEM & Municipal Customization Ready

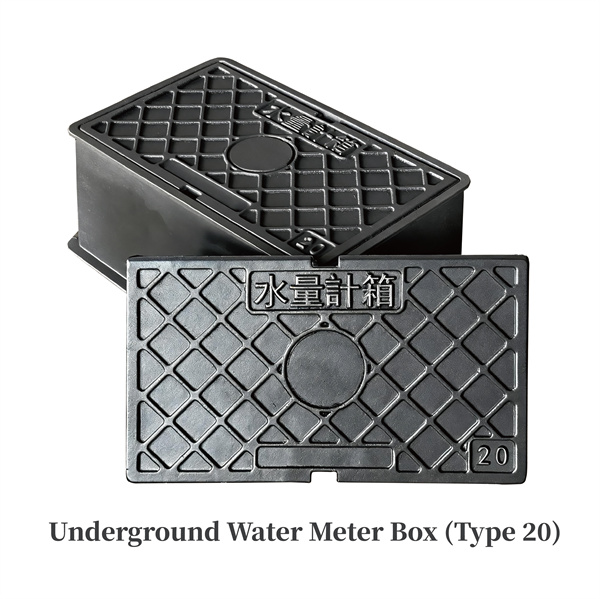

The heavy-duty cover incorporates dedicated flat casting areas (central circular and lower rectangular sections). These spaces are optimally designed for custom OEM/ODM casting, allowing water authorities and distributors to imprint custom logos, utility names, or regional markings directly from the manufacturer.
FAQ
Q: What is the load capacity of this ductile iron water meter box, and where is it suitable for installation?
A: Manufactured from premium ductile iron, this heavy-duty meter box is engineered to withstand substantial external impact and pressure. It is ideal for installation in municipal sidewalks, residential pavements, and light-traffic commercial zones. The robust frame and anti-slip cover ensure long-term stability and pedestrian safety, effectively protecting underground water meters from surface loads.
Q: Do you provide OEM/ODM services to cast our local municipal logo or utility name on the meter box cover?
A: Yes, we offer comprehensive OEM and ODM services. As you can see on the cover design, there are designated flat areas (the central circle and the lower rectangle) specifically reserved for custom casting. We can precisely mold your regional utility logo, company name, or specific serial numbers to meet your local municipal standards with fast production turnaround.
Q: How effectively does this housing unit protect underground water meters from dirt and deep soil freezing?
A: The precise integration between the 366x210mm cover and the 165mm deep frame creates a highly secure underground housing unit. This tight fit effectively prevents dirt, soil ingress, and surface water accumulation. Furthermore, the thick ductile iron construction provides a durable thermal barrier, significantly reducing the risk of damage to sensitive reader devices and boundary valves from deep soil freezing in severe weather conditions.
