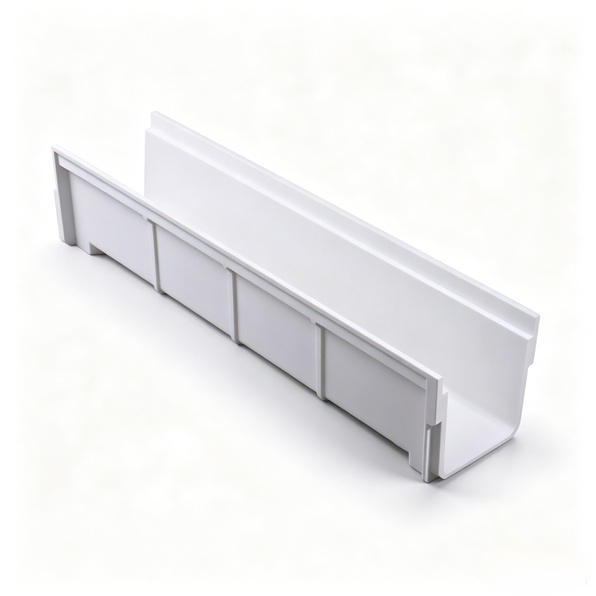

Heavy Duty SMC/BMC Composite Drainage Channel with Grating

High-strength SMC/BMC fiber-reinforced linear drainage channel system (FBU200*200*1000 mm) with heavy-duty grating options. Engineered for linear runoff water management in highways, gas stations, logistics hubs, commercial plazas, and industrial facilities.Fully compliant with BS EN 1433 and BS EN 124-5 standards, this 200x200x1000mm system supports heavy-duty load classes ranging from A15 up to D400 (up to 40 Tons).

We offer standard specifications (Main Size: 200x200x1000mm) to meet various municipal and industrial requirements. Below is the detailed technical data for the drainage channel and grating assemblies.

• Material Options: SMC (Sheet Molding Compound) / BMC (Bulk Molding Compound)

• Standard: BS EN 1433 / BS EN 124-5

• Load Class: A15, B125, C250, D400 (Up to 40 Ton)

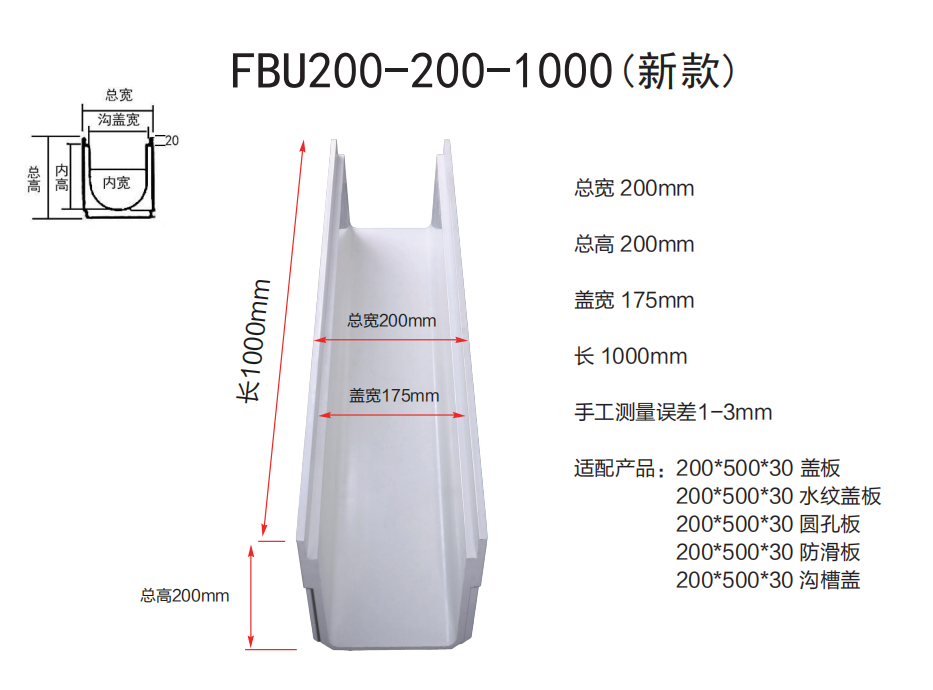

• Dimensions (W × H × L):

   Main Size: 200x200x1000mm(7.87" x 7.87" x 39.37")

   (Internal/External standard series available)

• Features: Double Seal Gastight, Locking System





High-Efficiency Hydraulic Performance

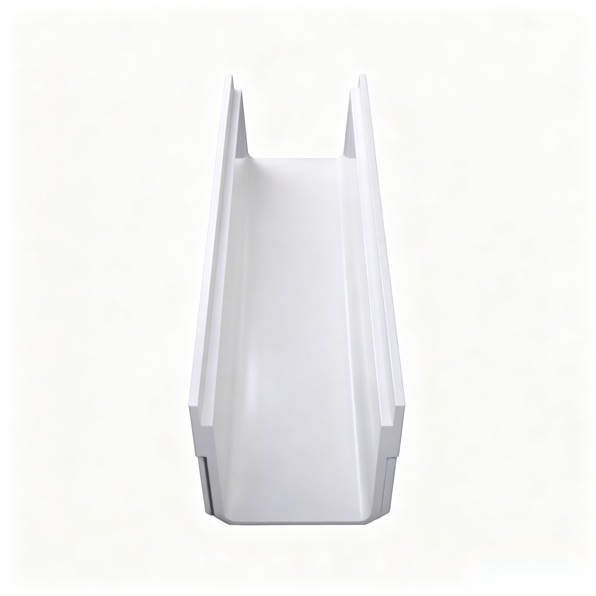

Featuring a smooth internal U-shaped profile within its precise 200x200x1000mm dimensions, the channel significantly accelerates water discharge and minimizes sediment buildup to deliver exceptional hydraulic flow efficiency.

Lightweight & Cost-Effective Installation

Weighing up to 70% less than traditional polymer concrete or cast iron alternatives, this modular 1000mm unit greatly reduces transport costs and simplifies on-site installation without the need for heavy lifting machinery.

Extreme Durability & Climate Resistance

Precision-molded under high temperature and hydraulic pressure, the system delivers complete immunity to chemical corrosion, outstanding UV resistance, and thermal stability ranging from -50°C to +150°C, guaranteeing a zero-maintenance service life exceeding 30 years.

Enhanced Security & Versatile Grating Options

Manufactured from non-recyclable SMC/BMC materials to provide inherent anti-theft protection and quiet vehicle crossing. As detailed in the specifications, the 175mm grating width perfectly adapts to various custom cover styles, including water pattern, round hole, anti-slip, and slotted designs.

Exceptional Heavy Load Capacity

Our precision molding ensures the cover and frame fit flawlessly. The anti-deformation property guarantees it will not warp under heavy axle loads, providing a reliable, trip-free surface for its entire service life.

Q: Where can the heavy-duty SMC composite drainage channel be installed, and what is its maximum load capacity?

A: Compliant with BS EN 1433 and EN 124 standards, our heavy-duty trench drains support load classes from A15 up to D400 (40 tons). They are highly suited for demanding environments like highways, petrol stations, logistics hubs, and industrial plants.

Q: How do SMC and BMC material options differ for linear drainage systems?

A: Both materials provide complete immunity to chemical corrosion and extreme thermal stability (-50°C to +150°C). SMC offers high tensile strength in a lightweight profile, while BMC provides a rigid, cost-effective solution to accommodate varying engineering budgets.

Q: How does the 200x200x1000mm trench drain improve water management?

A: The 200x200x1000mm unit features a precision-molded, smooth internal U-shaped profile. This design significantly accelerates hydraulic flow efficiency and effectively minimizes sediment buildup.
